Products Specifications

The solar advertising light box is designed to meet the novel and personalized needs of the advertising market, featuring a targeted appearance design. It uses glass integrated solar power generation, controllers, maintenance-free lead-acid batteries, and maintenance free lead-acid batteries to supply power for the new ultra-high brightness LEDs.

High-efficiency nano-luminescent materials transform point light sources into surface light sources, creating more uniform lighting. The advanced solar power system converts and stores electrical energy during the day, enabling the cabinet to illuminate at night. This solution not only saves electricity and is environmentally friendly but also enhances visual appeal with its unique design.

We have a design team with many years of industry experience, constantly pursuing product innovation and excellent performance. We provide personalized customization services tailored to the unique needs of each customer. Simply provide your application requirements, and we will create design renderings for you at no cost until you are completely satisfied!

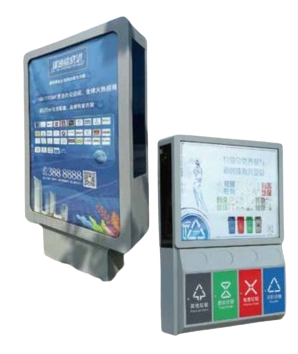

Solar light box

Solar light box
CD-XXP-2
CD-LMP-1
Dimensions
1400mm*420mm*2385mm
1400mm×420mm×2835mm
Advertising area
4.29㎡
4.29㎡
Solar glass power
150W
250W
Battery capacity
12V/40Ah
12V/60Ah
Cabinet material
Galvanized sheet (stainless steel) +tempered glass
Galvanized sheet (stainless steel)+tempered glass
Surface treatment
Heat electrostatic spraying, baking paint
Heat electrostatic spraying, baking paint
Power supply mode
Solar glass
Solar glass
Installation method
Cement foundation + anchor bolts
Cement foundation + anchor bolts

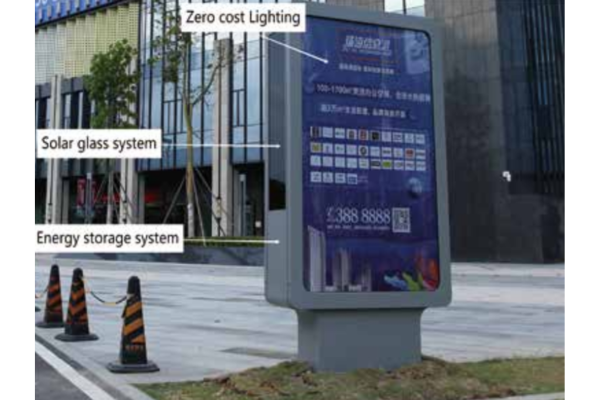

Product Showcase

35

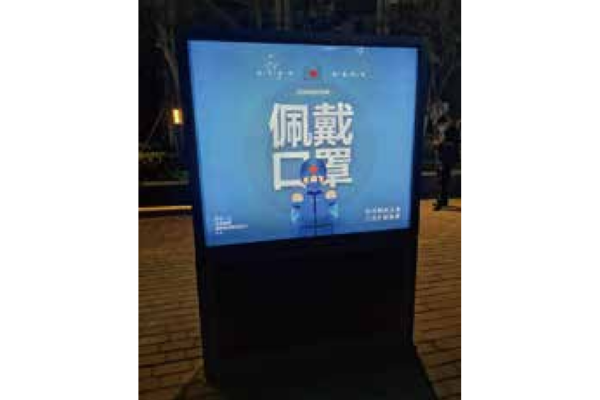

Specifications
38

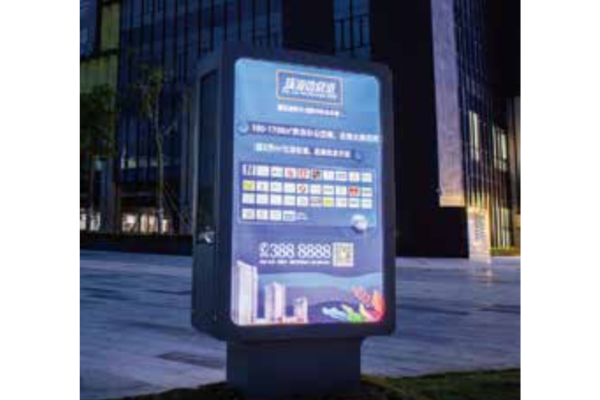

Signs Solar Billboard
37
Solar Billboard
36

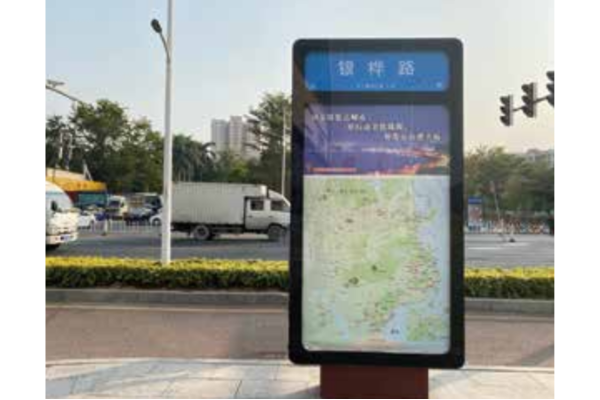

Solar Road map

Solar garbage sorting box

Solar garbage sorting box
CD-FL-1
CD-ZL-1
KIOSK
Dimensions
1600mm*600mm*2200mm
3680mm*1200mm*2810mm
4600mm*1400mm*3100mm
Advertising area
3.28㎡
3.64㎡
0.88㎡*2, 3.98㎡*2
Solar glass power
150W
600W
600W
Battery capacity
12V/40Ah
24V/125Ah
24V/125Ah
Cabinet material
Galvanized sheet (stainless steel) +tempered glass
Galvanized sheet (stainless steel) +tempered glass
Galvanized sheet (stainless steel) +tempered glass
Surface treatment
Heat electrostatic spraying, baking paint
Heat electrostatic spraying, baking paint
Heat electrostatic spraying, baking paint
Power supply mode
Solar glass
Solar glass
Solar glass
Installation method
Cement foundation + anchor bolts
Cement foundation + anchor bolts
Cement foundation + anchor bolts

Product Showcase

40

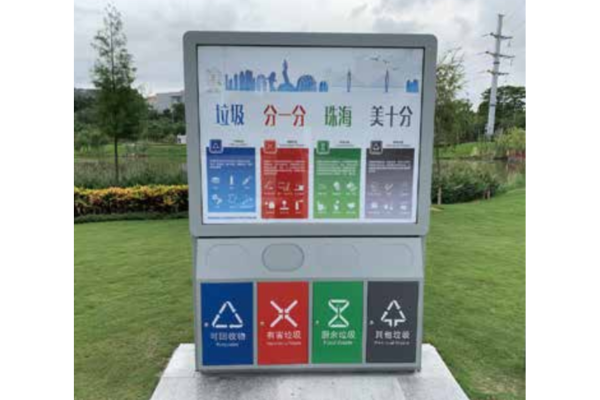

CD-FL-1
41

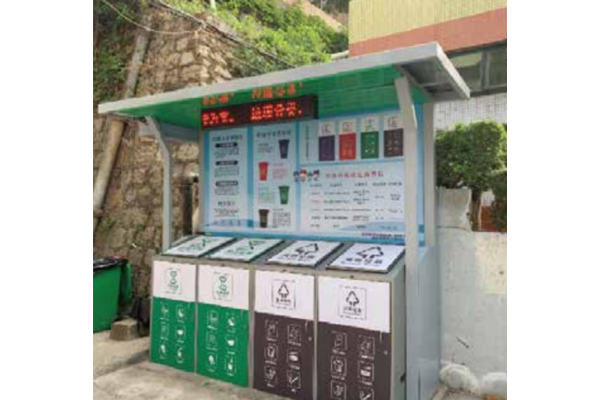

CD-ZL-1
42

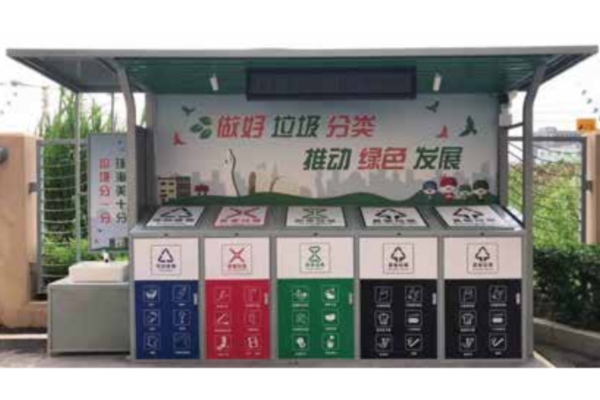

SOLAR GARBAGE SORTING KIOSK
43 43

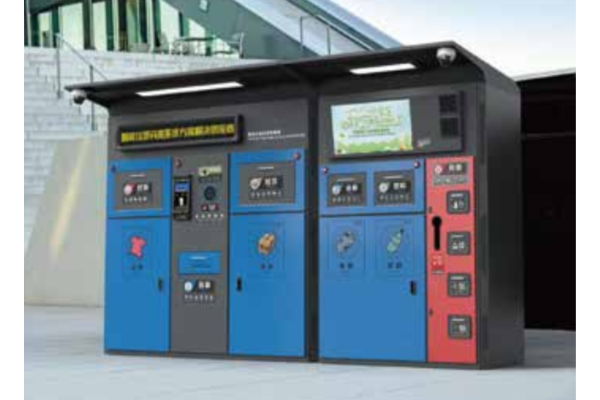

Smart Garbage Room
