Products Specifications

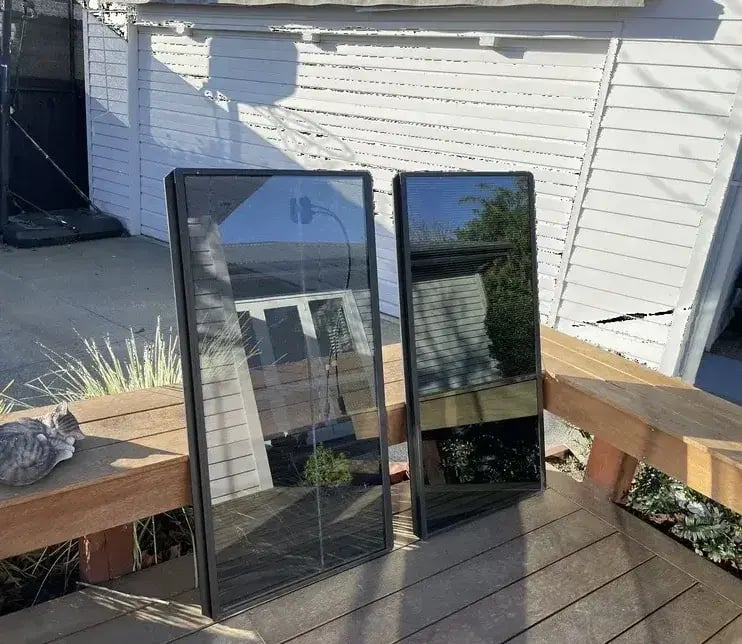

Golden Solar BIPV’s Aesthetic Photovoltaic (Solar) Glass, offers a unique material solution which blends architectural design with functionality.

Solar Glass can perfectly replace traditional sunroom glass, and provides excellent insulation and shading, with built-in sunshades that reduce indoor temperatures by 10-15 degrees in summer. It boasts outstanding performance, with no cracks in bending or hail tests, and its strength surpasses stone and tempered glass standards. The glue-free installation uses structural waterproof technology, ensuring a leak-proof and highly waterproof design. Additionally, the product complies with national policies and regulations, with support from the Photovoltaic Construction Development and Reform Bureau.

Product Parameters
Opaque
Translucent
Size (mm)
1240*619
1240*619
Area (㎡/per glass)
0.75
0.75
Power (w/per glass)
115
78
Power (w/㎡)
153w/㎡
104w/㎡
Material
Cadmium Telluride
Cadmium Telluride
Weight (kg/per glass)
13
13
Short Circuit Current Isc (A)
1.27
1.01
Open Circuit Voltage Voc (V)
127.3
127.3
Peak Power Current Ipmax (A)
1.18
0.94
Peak Power Voltage Vpmax (V)
101.7
99.2
Solar sunroom solutions
Opaque
Translucent
New Sunroom
comptab-yes-icon
comptab-yes-icon
Existing Sunroom
comptab-yes-icon
comptab-yes-icon
Flat Roof
comptab-yes-icon
comptab-yes-icon
Terrace
comptab-yes-icon
comptab-yes-icon
Carport
comptab-yes-icon
comptab-yes-icon
Other
Talk to our specialist
Talk to our specialist
Features
Sunshade and Heat Insulation, Glue Free
Sunshade and Heat Insulation, 20% Lighting Rate, Glue Free

Product Showcase

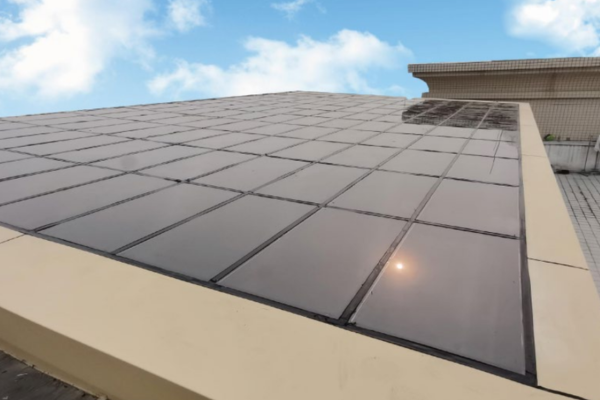

44
Solar Laundry room

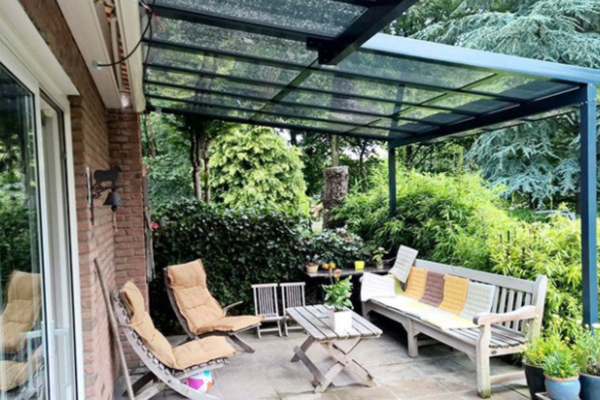

47
Solar sunroof at backyard

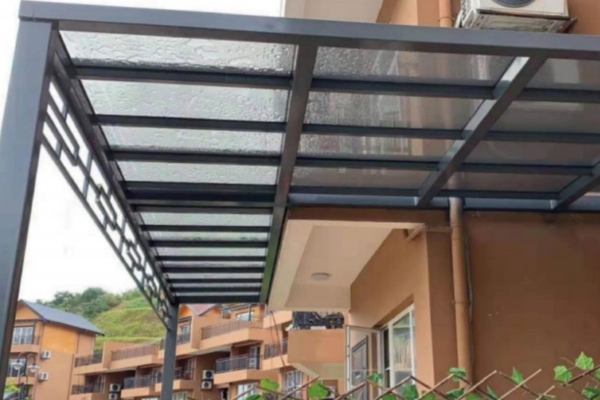

46
Solar sunroof at backyard

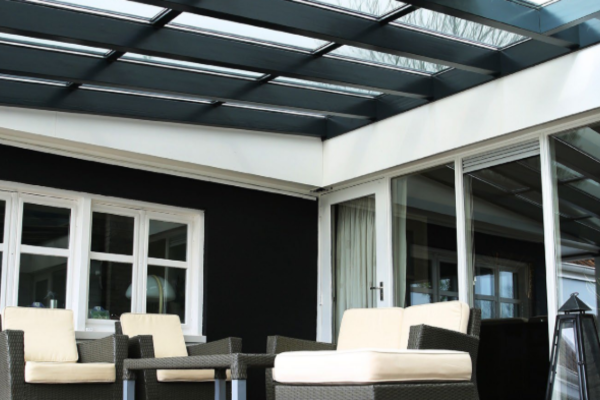

48
Solar sunroof at backyard
